Installation instructions for common whole house water filter systems. ... View the 1" Whole House Installation Diagram. Download PDF Diagram. Whole House Filters. Whole house filters are typically recommended to be installed by an experienced professional installer. This could be a WQA-Certified Installer, a plumber, handyman, or you can do-it ... Congratulations on your purchase of the iSpring Whole House Water Filter system. Featuring a three-stage filtration process, it was designed with your comfort and convenience in mind. The iSpring Whole House Water filter treats: sediment, turbidity, iron, manganese, sulfur smell, pesticides, herbicides, and other chemicals.

section of the main Water Line IN. (see diagram). 8. Fit together pipe union and shut off valve. Use Teflon tape on threaded fittings. 9. Simultaneously fit together shut off valve and whole house filter using pipe nipple or hex nipple to draw then together on the IN side of the filter. 10. Fit pipe hanger on water IN side for additional support. 11.

Whole house water filter installation diagram

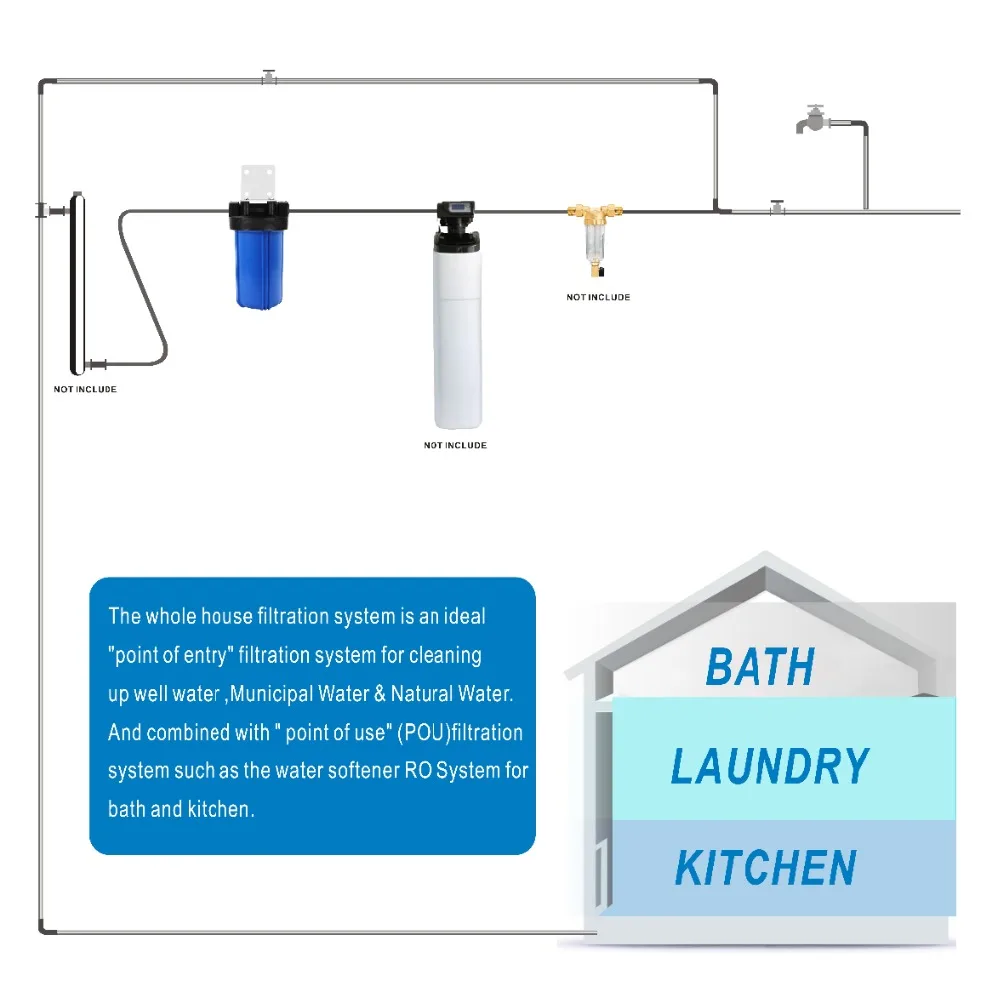

Plumb waterline to system. Make sure that the flow direction is correct through the filter system. There are several ways to plumb your whole house Filter into your existing water line. The diagram below is the basic install layout. Open a faucet downstream of the Whole House filter unit. Make sure the valve on the lid is turned to "FILTER". Push the Bypass Valve into the head of both the Pelican Whole House Water Filter and Water Softener Alternative with the unthreaded ends oriented toward the tanks and hand-tighten the Quick Connect Nuts. OMNIFilter's U25 10″ whole house valve-in-head water filter system is designed for average size homes with 3/4″ incoming water lines and is ideal for both well water and city water applications. View and Download Omnifilter U25 Series E installation instructions manual online. Whole House Water Filter.

Whole house water filter installation diagram. Due to the different water quality and water consumption of each house, the actual replacement time of the filter element is not consistent. The actual use situation shall prevail. When the filter element needs to be replaced, the prompt light on the machine and the lamp ring of the faucet will prompt through the color change. Drain any water from your filter housing. Support the base of the filter and insert it back into the top manifold. Insert the new filters facing the correct direction. The carbon, KDF, or PHO filters will need to have their silicone o-ring facing the top of the system. Make sure your filter is correctly aligned and then begin tightening by hand. Once Those running on well water should probably install a whole house water filter after the water softener, to avoid reduced flow during backwash cycles. Well water doesn't naturally contain any chlorine, so unless you add it yourself, there won't be any around to damage the softening resin. Whole House Water Filter Installation Diagram The OmniFilter BF7a Whole House Water Filter System reduces dirt, sand, sediment and rust particles from your water and comes complete with an RS6 Rust and Sediment Filter and filter wrench. It will also accept OmniFilter's T08, R06, RS15, RS18 and RS16 filters.

For instance, a whole house water filter to target larger contaminants at the point of entry, a water softener to soften the hard well water, a UV filter if the well water contains microorganisms, a Reverse Osmosis system for drinking water, and shower filters and faucet filters to remove residual contaminants due to plumbing system. Ask This Old House plumbing and heating expert Richard Trethewey improves the taste and odor of municipal drinking water with a whole house filtration system... Home Master Annual Filter Change Procedure. Home Master Tank Pressurization Instructions. Home Master ASV Delete Procedure. Home Master Whole House Filter Installation Instructions [English] [Spanish] Home Master Water Softener Installation Instructions. Home Master Water Softener Digital Valve Operating Instructions. 12 Install the second valve assembly onto outlet side of filter. 13 Be sure both ball valves are turned off. 14 Add a bare copper ground wire from the house side of filter to water meter side of filter to ensure the plumbing connection is grounded. 15 Turn the water back on, open both ball valves and check for leaks.

Whole house water filters are considered point-of-entry (POE) systems. They're generally installed outside your home or inside your garage on the main water line.. What micron filter is best for well water? Filters with a high micron rating (i.e. 25 micron) have larger pores and are meant to filter particulates such as dirt particles, whereas a small size (like 1 micron) would filter and ... The Express Water Reverse Osmosis System is designed to provide you with years of great tasting pure drinking water and trouble-free service. Since most of your system is already assembled, getting started is easy! Read the installation manuals below for simple instructions on how to attach the color-coded connections and get your system started. If you have a whole house filtration system installed, a water softener should be set up before it. The maximum water pressure at the point of installation should not be more than 120-125 psi. Outdoor Installation. Water softeners perform best in temperatures ranging from 35 to 100 degrees. Here is an installation diagram of a favorite whole house filter system of mine. It's called the Aquasana Rhino 1,000,000-gallon whole-home system . It can be purchased with as little as 4 multiple filters that include a good carbon filter or in a full-blown version with some other filter options and add-ons as shown in the photo below.
